BD Rowa™ Product Carrier
Delivery time: 6 business days
Couldn't load pickup availability
Storage of vials, tubes, small canisters and other special forms.

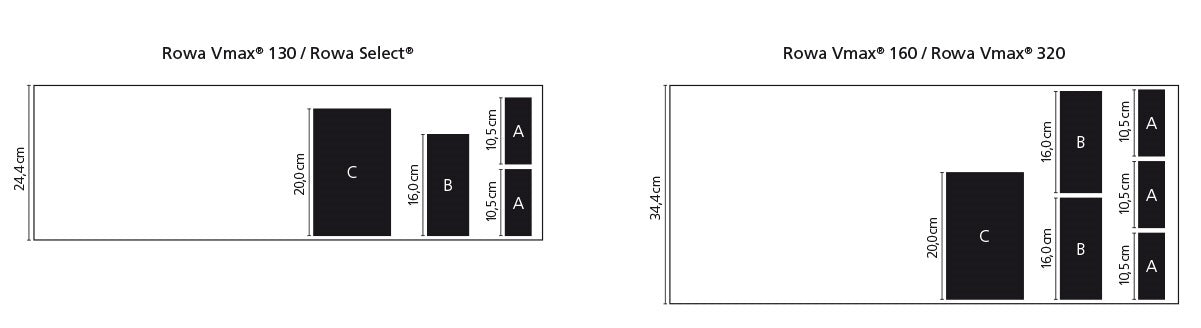

The BD Rowa™ product carriers enable the stock input of bottles, tubes, small jars and other special variants into the Vmax (not for Vmax210) or Smart automated storage and retrieval systems.

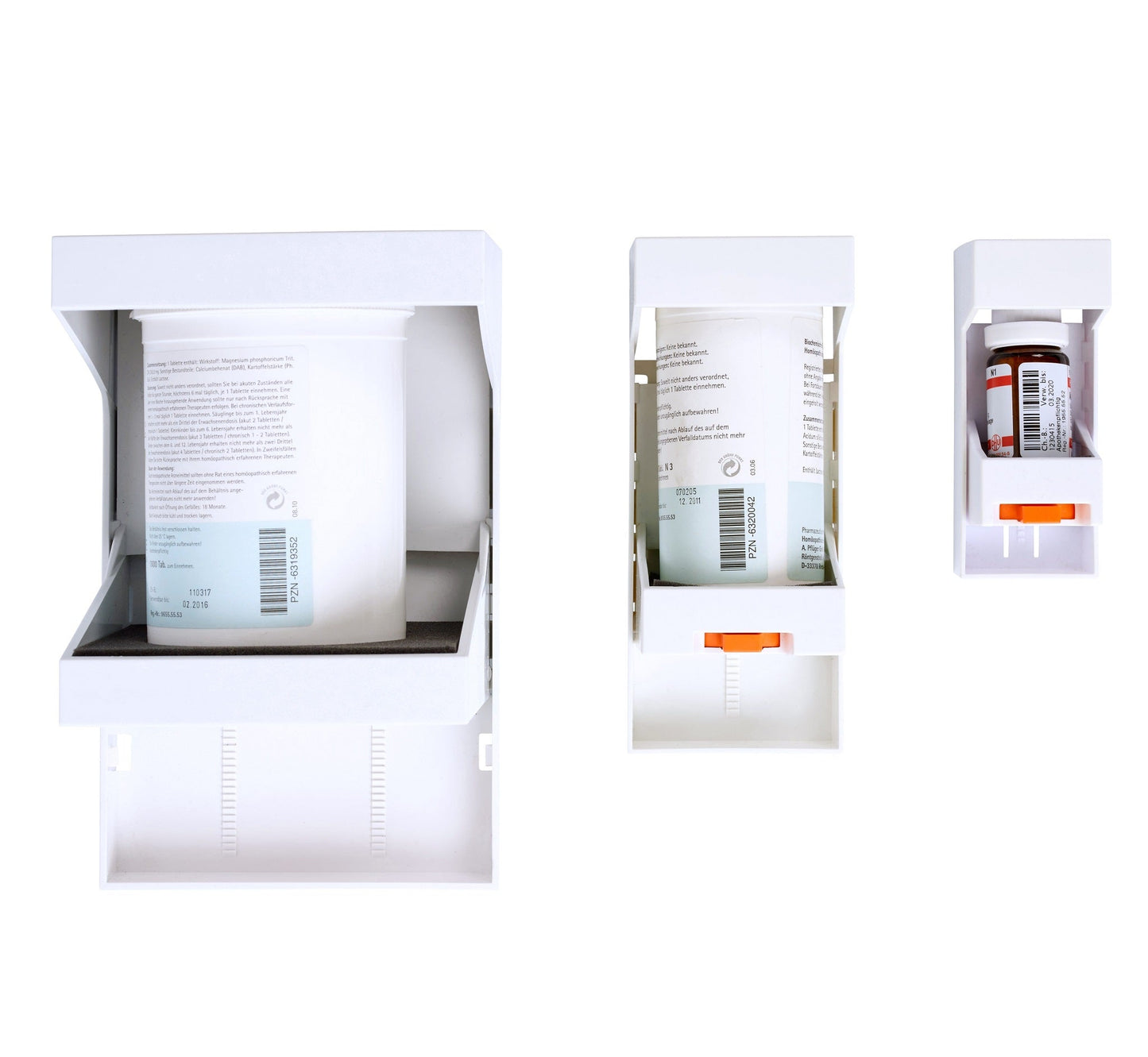

The BD Rowa™ product carrier can be used for medication in special forms from the Rx, OTC and self-service display product range. Special forms refer to packaging units such as vials (e.g. homeopathy), tubes (e.g. cream) and small canisters.
Technical data:
|

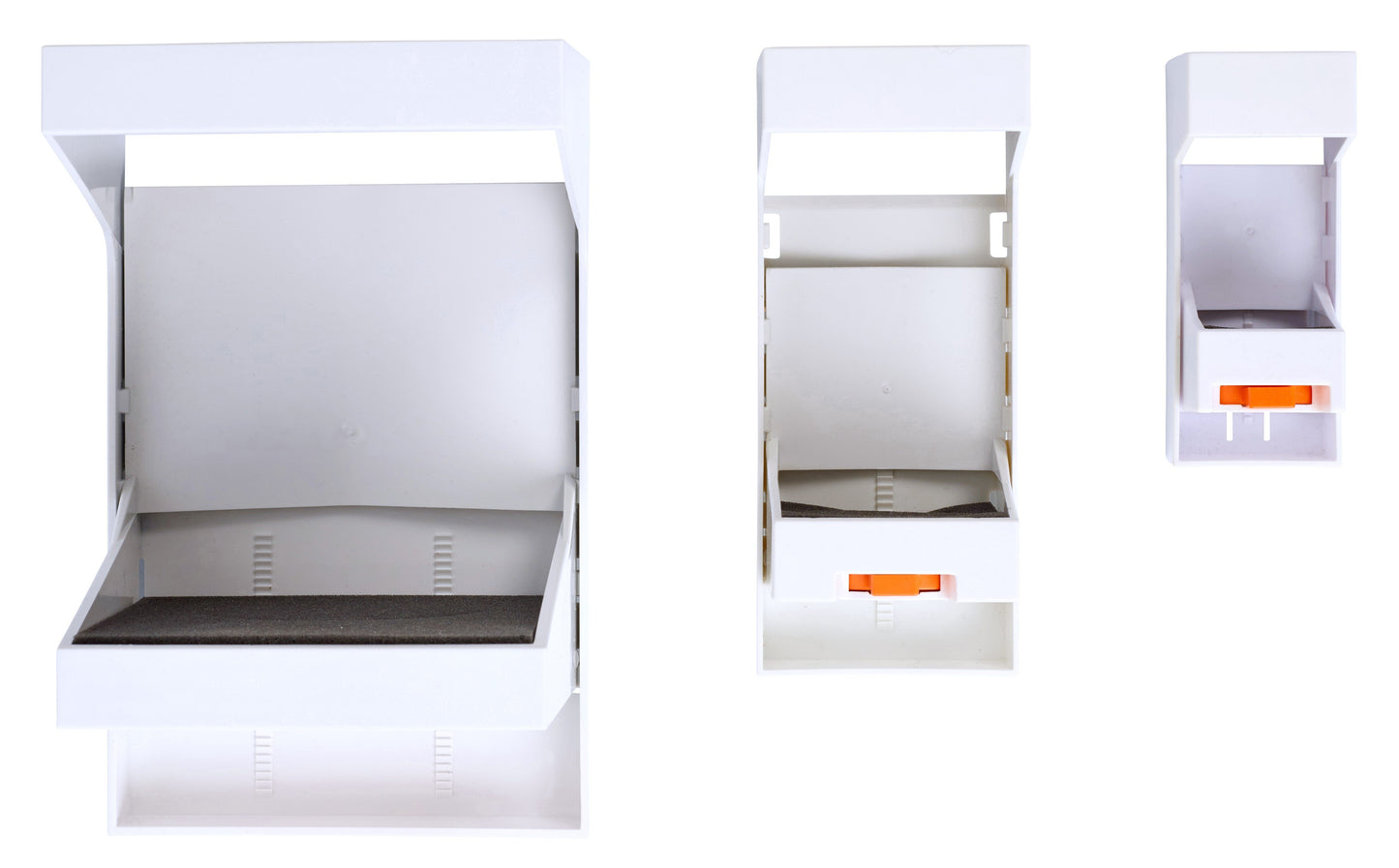

Size (L × W × H) |
Min. size of special containertype (L × Ø) |
Max. size of special containertype (L × Ø) |
|

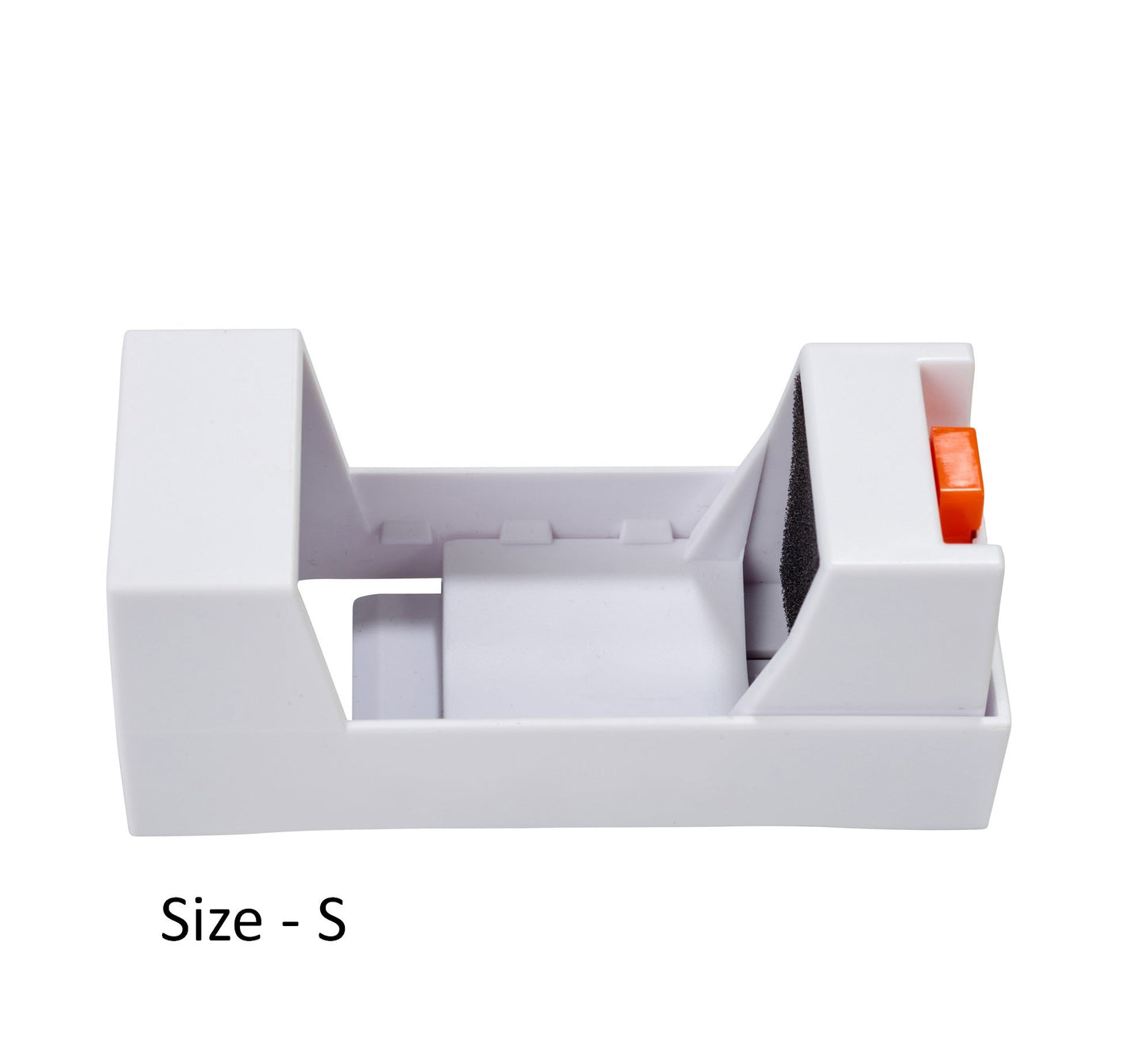

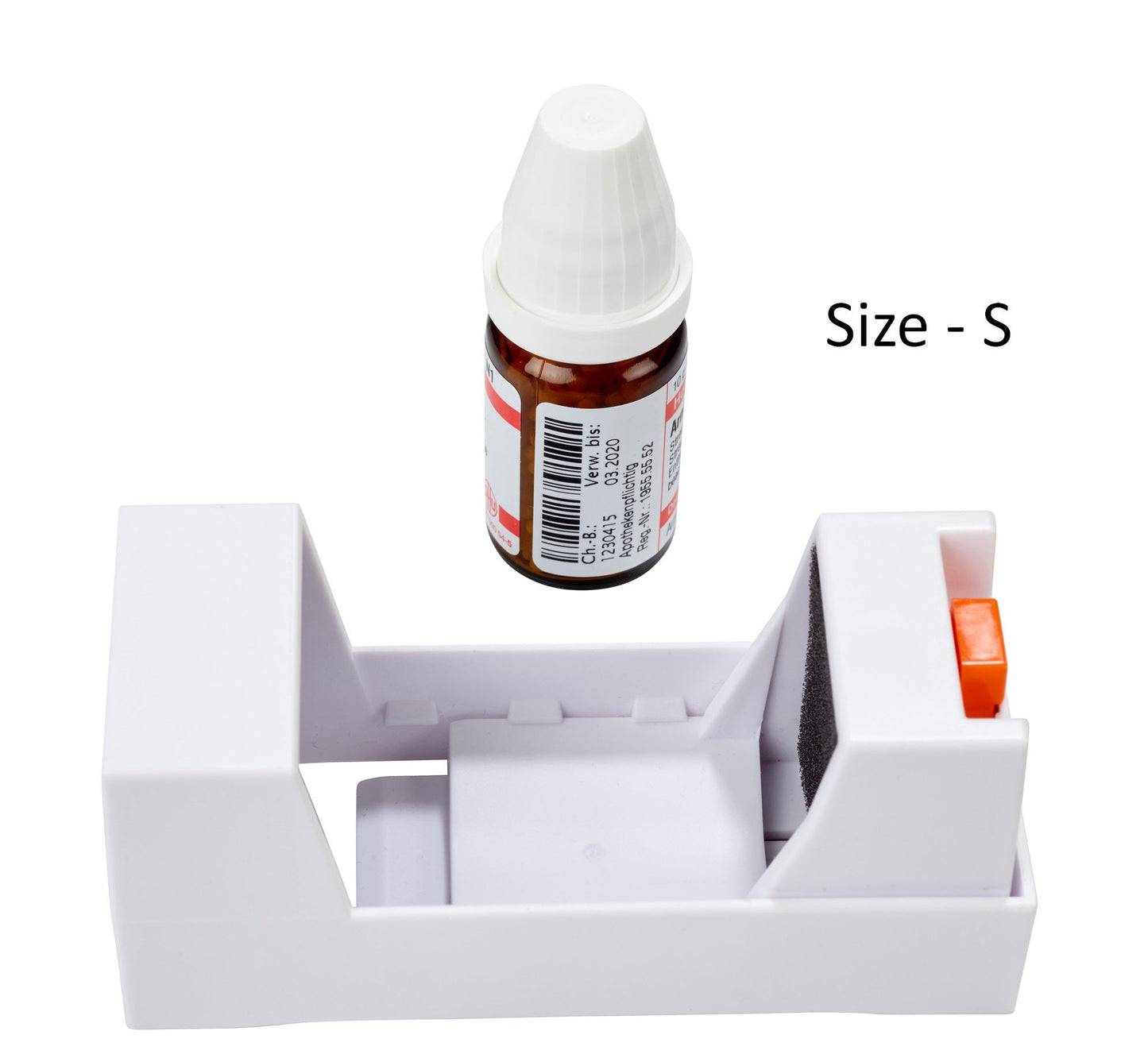

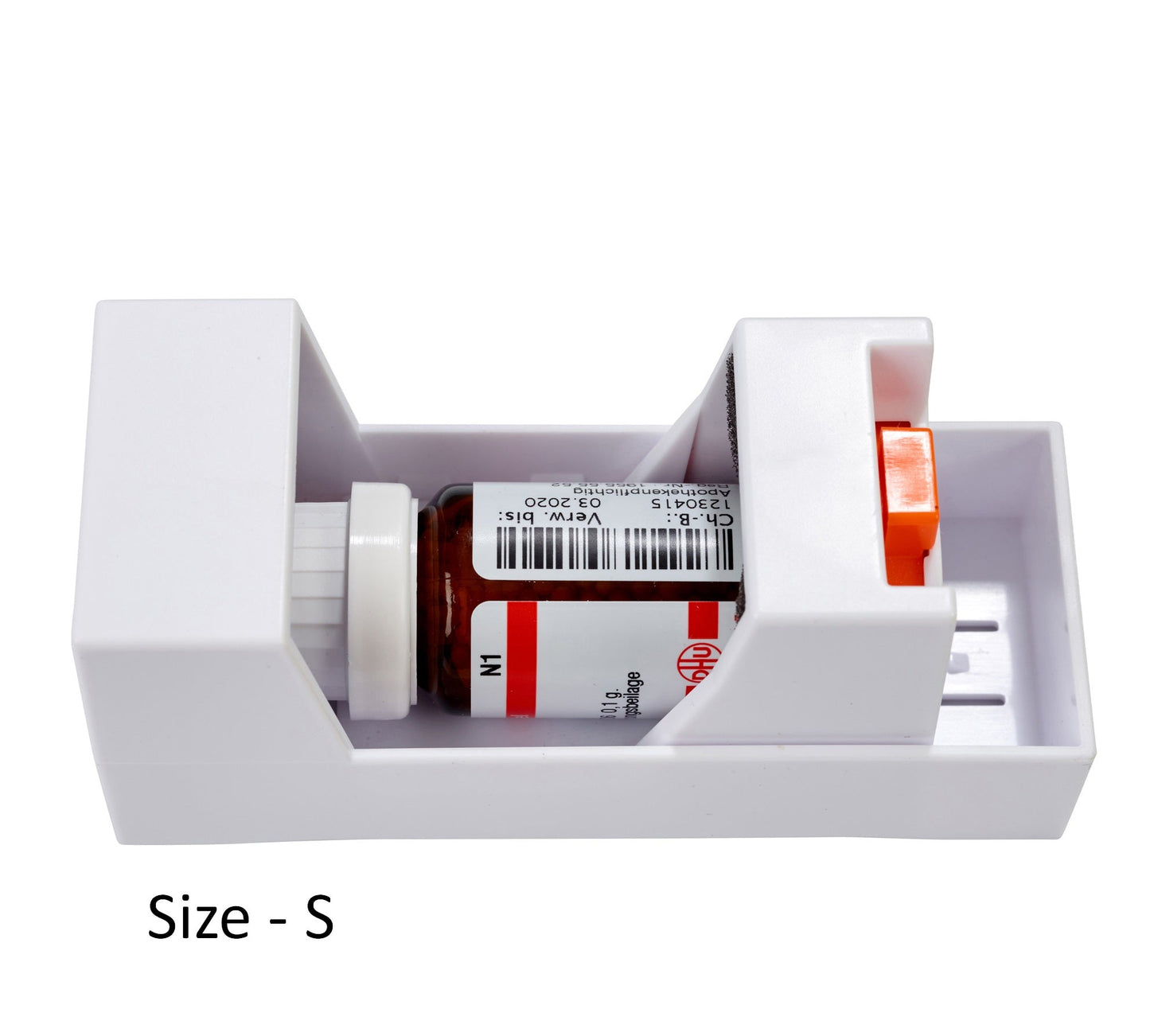

S: 105 × 42 × 46 mm |
32 × Ø 10 mm |
70 × Ø 10 mm |
|

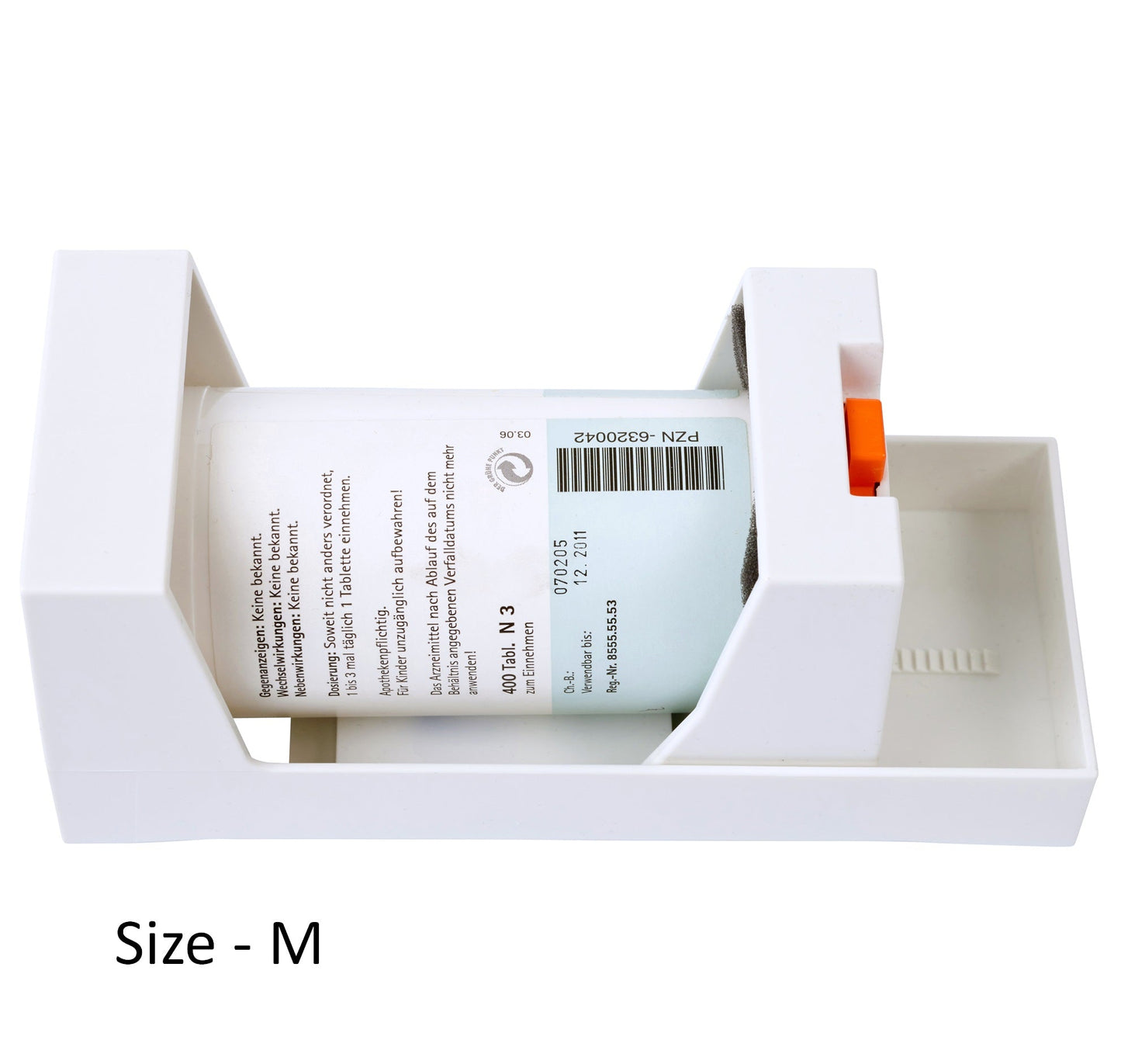

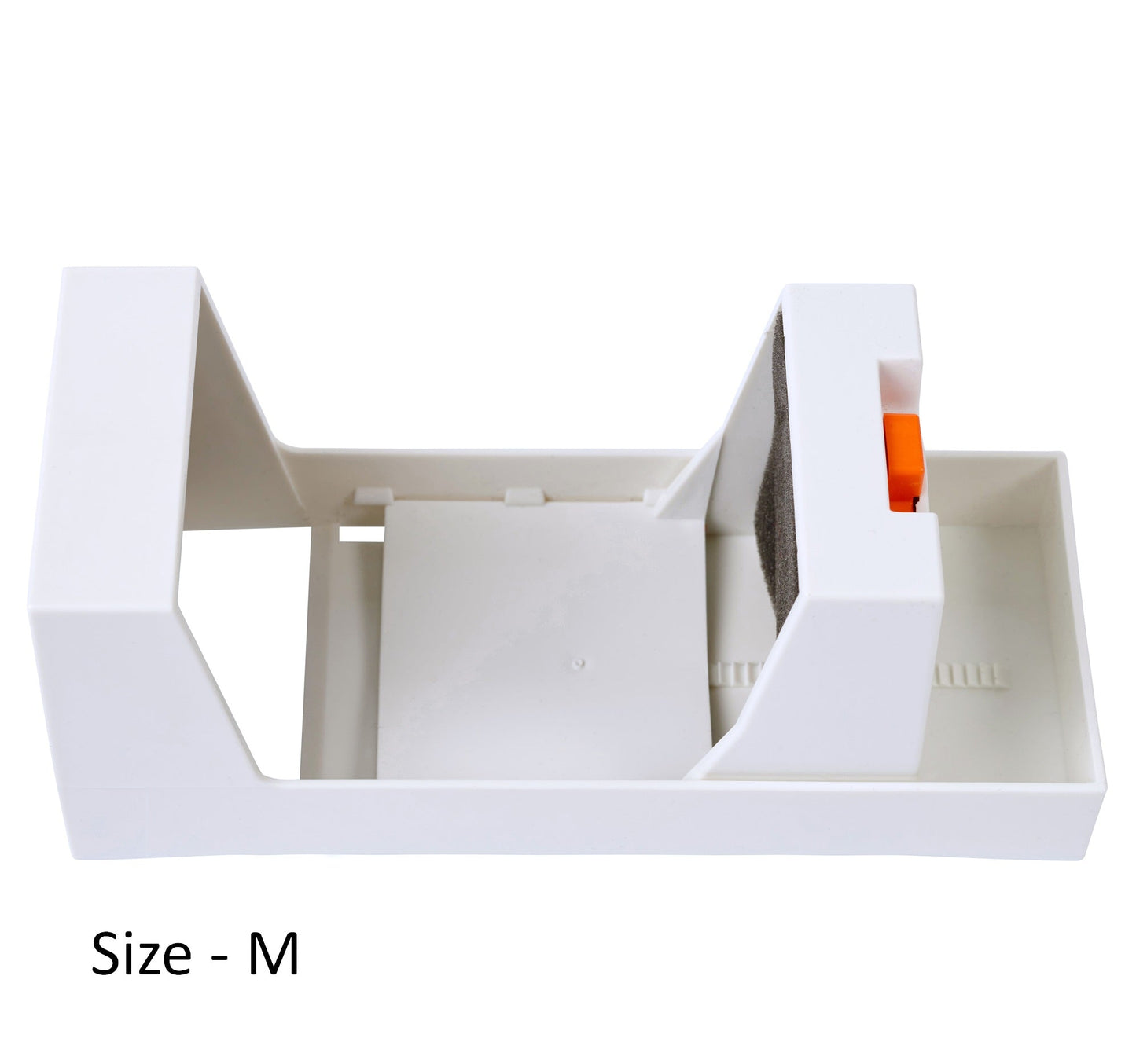

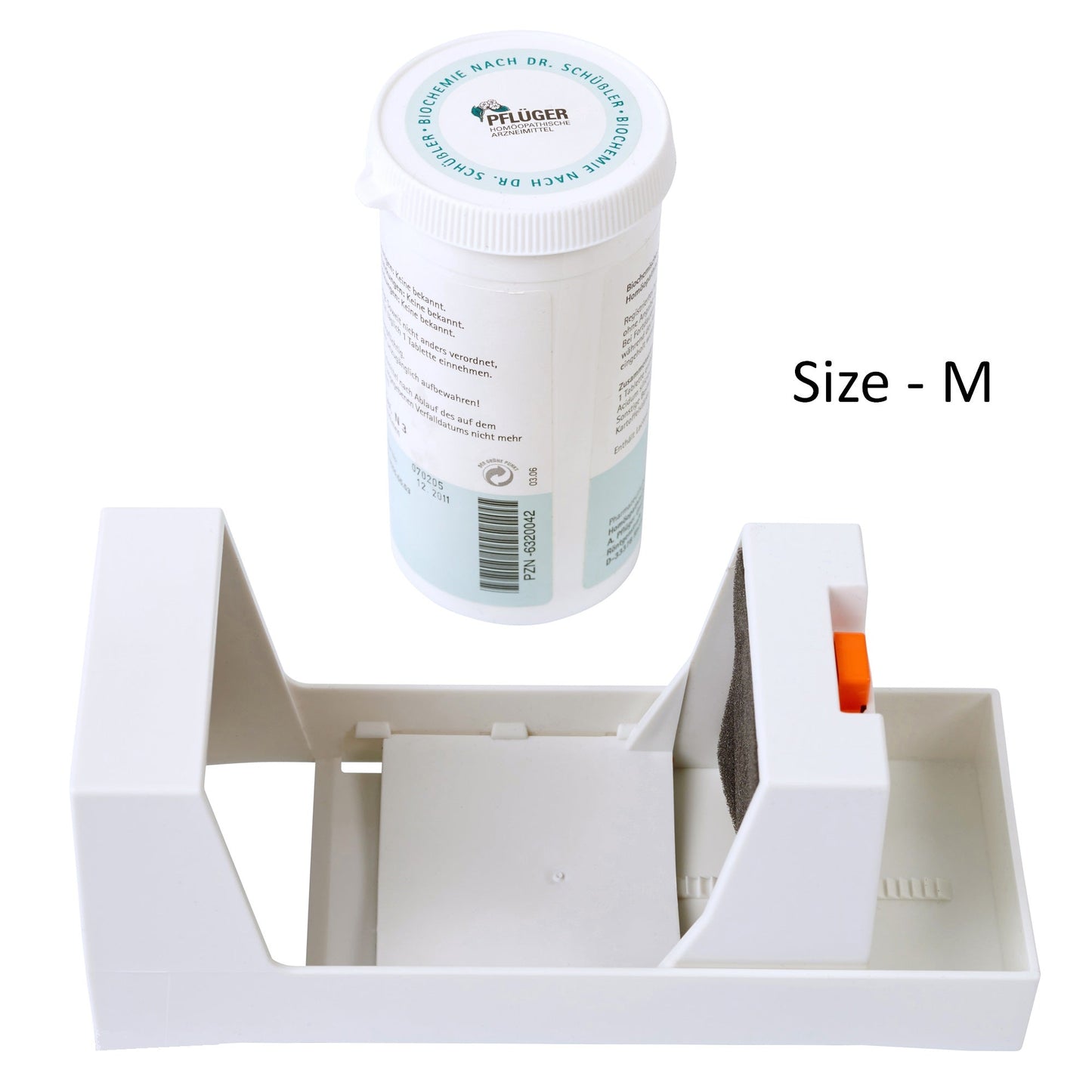

M: 160 × 66 ×70 mm* |
56 × Ø 24 mm |
125 × Ø 24 mm |
|

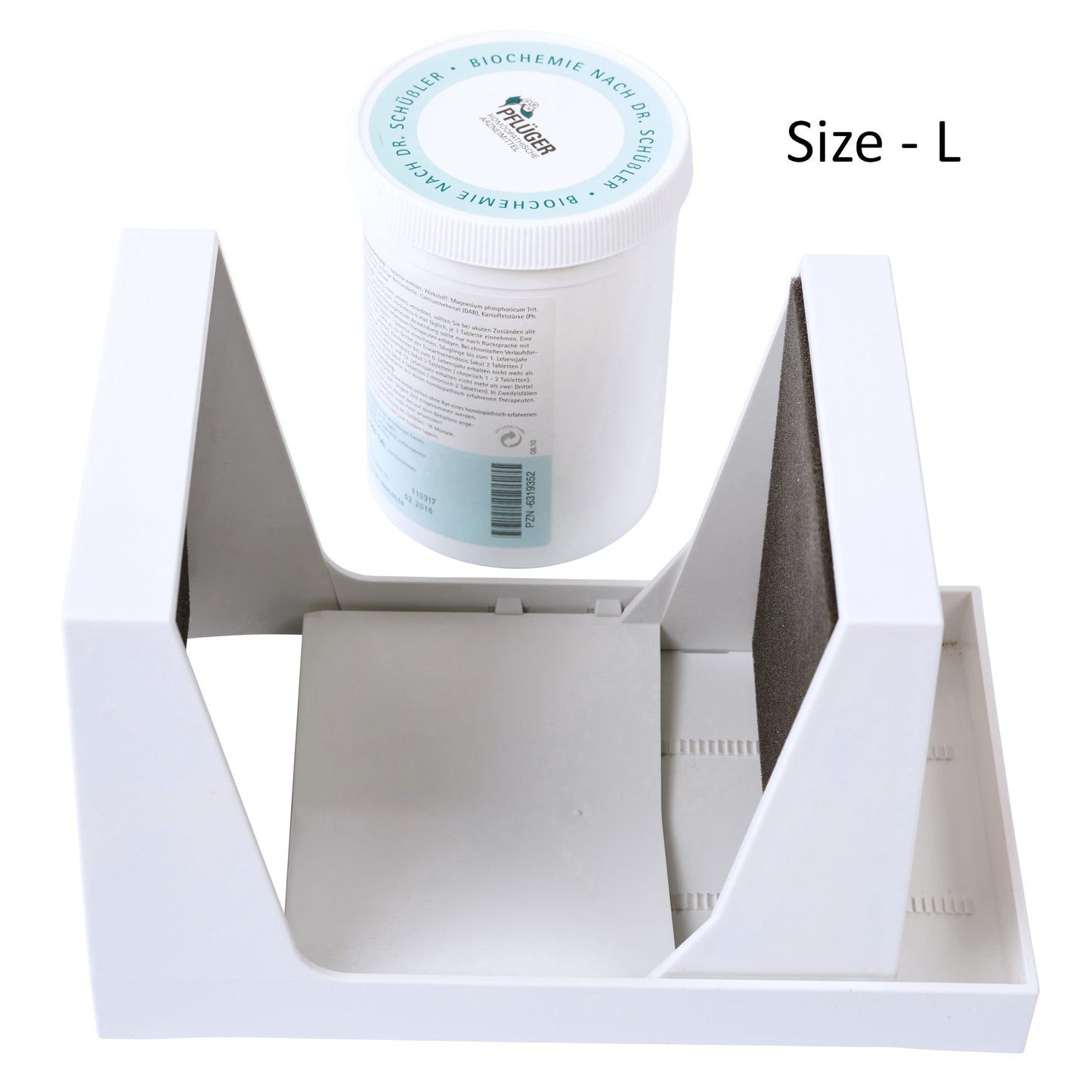

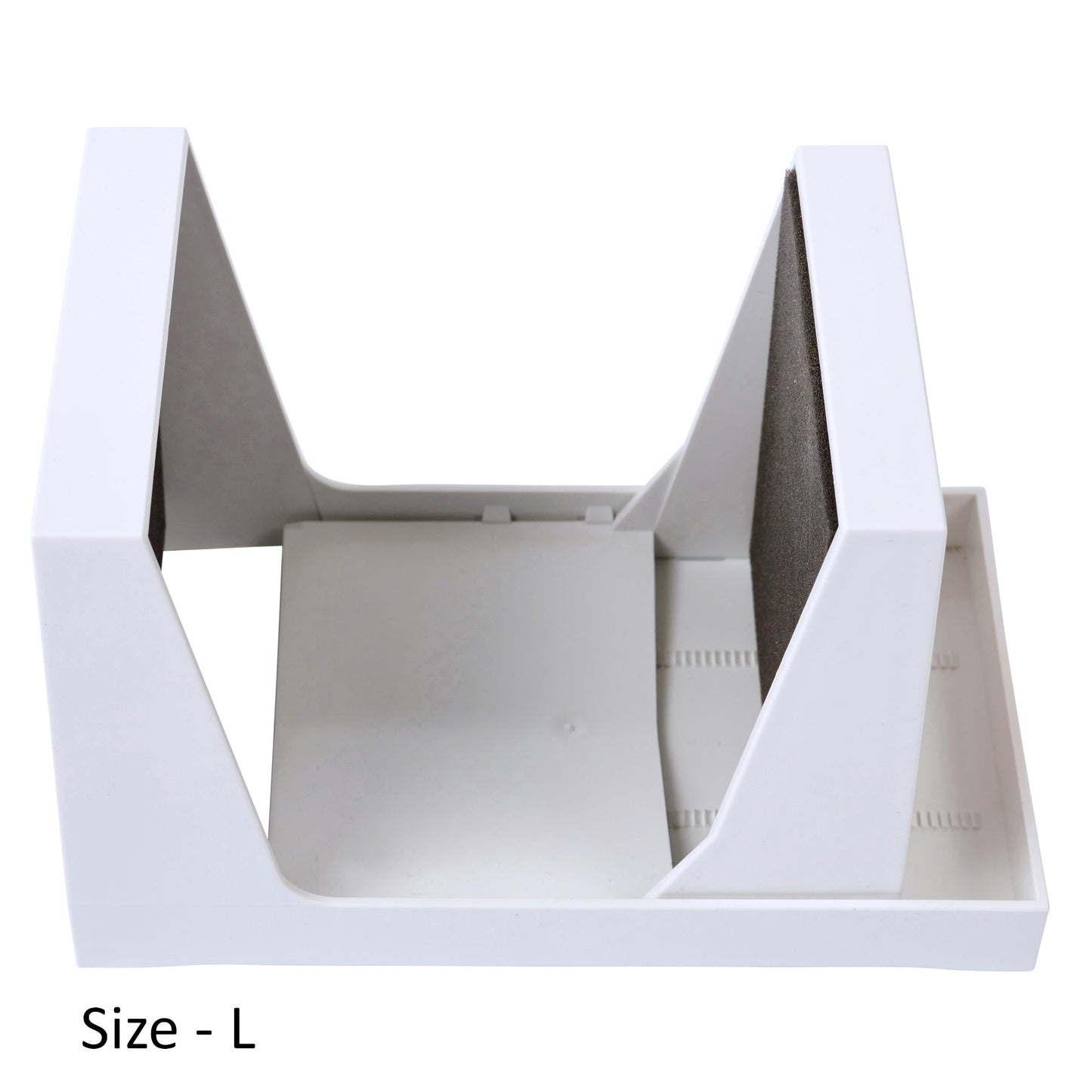

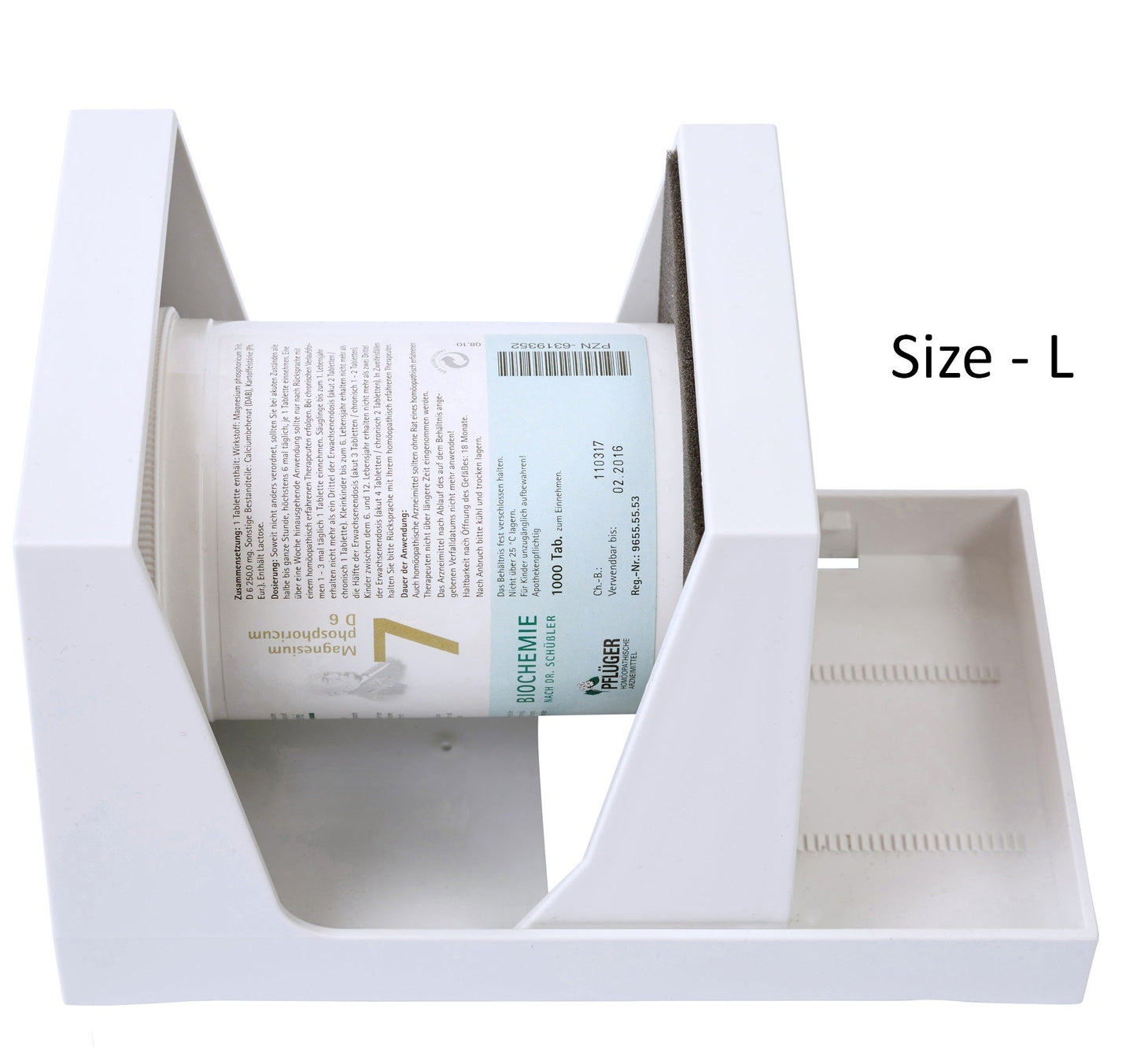

L: 200 × 122 × 126 mm* |
115 × Ø 42 mm |
165 × Ø 112 mm |

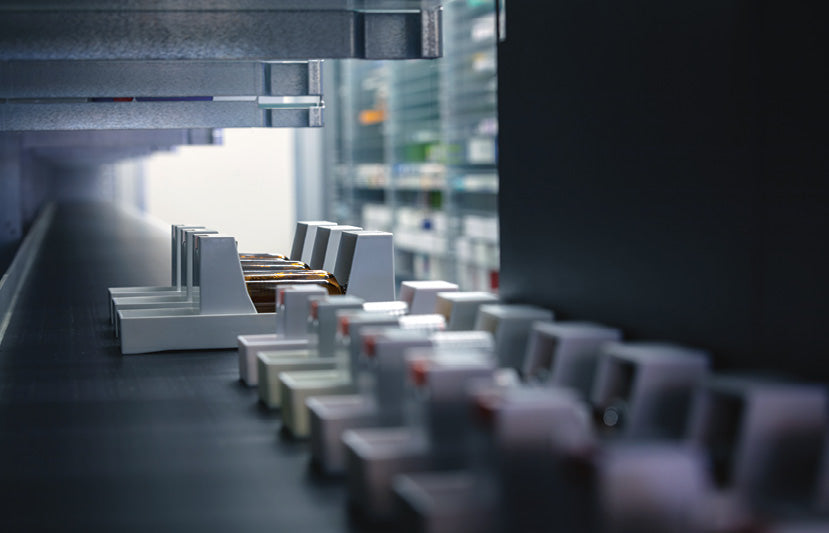

*Size M and L product carriers CANNOT be output using a conveyor system.
